12 Core Single Mode G657A2 MPO Fiber Optic Loopback

12 Fiber Optical Single Mode SM G657A2 MPO Fiber Optic Loopback


1. Product Overview:

MPO/MTP Loopback is used widely within the testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface - 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices.

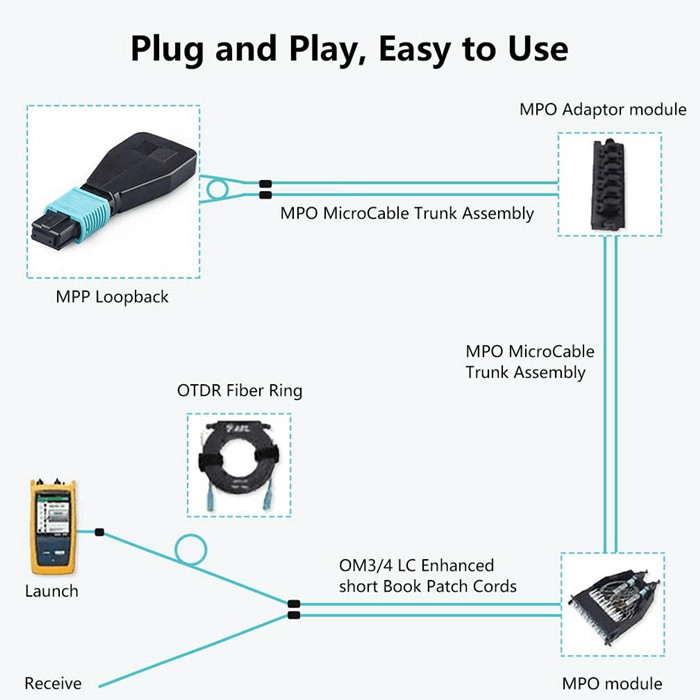

MPO/MTP loopbacks can facilitate and speed up IL testing of optical network segments by connecting them to MPO/MTP trunks/patch leads.

By using PI Manufacturing's MPO loopback tester, you will determine the source of your problem swiftly, allowing you to address the situation and experience the fiber optic transfer of data as they were manufactured for.



2. Optical Cable Loopback Feature and Benefits:

1. Fiber Type: SM 9/125, MM 50/125
2. Fiber Core: 12 or 24 Fiber Ferrule MPO/MTP
3. Fiber Jacket: LSZH, OFNP, OFNR Cable Jacket Options
4. Connector: Female and Male MPO/MTP option of Connectors
5. 40G QSFP+ and 100G CXP/CFP transceivers
6. Factory Terminated and Tested
7. MPO/MTP Interface - MPO/MTP components feature superior optical and mechanical properties

3. Fiber Optic Backloop Adapter Applications:

1. Data Centre Infrastructure
2. Storage Area Network- Fiber Channel
3. Parallel Optics
4. Infiniband
5. Emerging 40 and 100Gbps Protocols
6. Datacenter

4. Certification And Compliance

1) TIA/EIA-568-C.3 and ISO/IEC 11801
2)IEC-61754-7 & EIA/TIA-604-5
3)Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC




5.Optic Adapter Specification & Technology Parameters:

6. Ordering Information:

7. Wuhan Geehe Comm Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will reply with 1 hour and give solve solutions within 2-3 hours.

G657A2 Fiber Optic Loopback

Fiber Optic Loopback

12 core mpo loopback

12 Core Single Mode G657A2 MPO Fiber Optic Loopback Images
