LC/UPC Fiber Optic Cable Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber

Wuhan Geehe Optical Communication Co.,ltd
Contact Now

LC/UPC Fiber Optic Cable Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber

Brand Name : GEEHE, can do OEM

Model Number : GH-AD-0039

Certification : ISO9001:2015,Realiability Reports,UL,CE

Place of Origin : Wuhan China

MOQ : 100 pcs

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, Cash, Ali Pay, MoneyGram, Cash

Supply Ability : 6,600 pcs/per day

Delivery Time : Within 3-5 working days

Packaging Details : PE bags per piece with thick outer cartons,OEM details

Model Name : LC/UPC Fiber Optic Adapter Duplex

Mode Type : Duplex

Adapter Insert Material : Zirconia/Ceramic, Metal

Housing : Metal, Plastic

Color : Red, White, Black, Yellow, Violet etc

Operation Wavelength : 1310 or 1550nm

Connector Type : SC/APC(UPC),LC/UPC(UPC),FC/APC(UPC), etc

Durability : >1000 mating times

Operating Temperature : -40~75℃

Adapter Mounting Type : Flanges

Contact Now

LC/UPC Fiber Optic Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber

1. Product Overview:

The LC OM4 Multimode adaptor is used to join two connectors together and is usually mounted in a fiber optic patch panel, fiber optic breakout box, and more recently in fiber optic wall outlets where a fast fiber link is required in an office environment. The adapters are suitable for fiber distribution units like splice panels and wall enclosures. Each fiber adapter fits securely into designated slots and is used to couple the fiber connections together securely inside of a fiber distribution unit.

The adaptors are supplied in Duplex or Quad versions.


The LC adaptor is a proven small form factor design, enabling a greater number of fibre ports where space is limited.

LC/UPC Fiber Optic Cable Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber


2. Optical Cable Adaptor Feature and Benefits:

  • Compliant with: IEC, Telcordia
  • Convenience and ease of handling
  • Optical performance 100% factory tested
  • Flange or threaded mounting type
  • Ceramic/Zirconia or phosphorous bronze sleeves

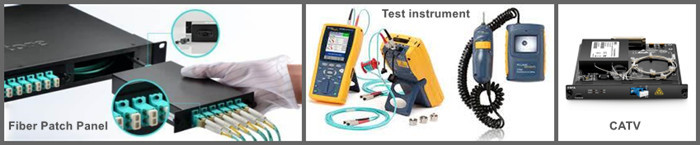

3. Fiber Optic Adapter Applications:

  1. FTTH, LAN, PON & Optical CATV
  2. Local ring net
  3. The optical fiber communication system
  4. Optical fiber test equipment
  5. Optical fiber sensor

LC/UPC Fiber Optic Cable Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber


4. Optic Adapter Specification & Technology Parameters:

parameter LC
End-face UPC/PC
Mode Single-mode
Sleeve Zirconia ceramic
Insertion loss (dB) ≤0.2
Exchangeability (dB) ≤0.2 (connect randomly)
Tensile strength (dB) ≤0.2 (0~100N)
Vibration (dB) ≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB) ≤0.2(-40~80℃, 21 cycles)
Repeatability ≤0.2dB
Service life >1000
Plug 1-2.5 N



5. Ordering Information:


EX: OFA-D-FC-APC-Z-N-N

OFA -X -XX -XX -XX -X -X

S: simplex

D: duplex

SC

FC

ST

LC

MU

ST

APC

UPC

PC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter

Fiber mode Connector Type Connector Type Sleeve Flange type Shutter type


Parameter Unit Value
Connector / FC ST SC LC
Sleeve / Zirconia
Insertion Loss dB ≤0.20(Plug≤0.30)
Repeatability Time >1000

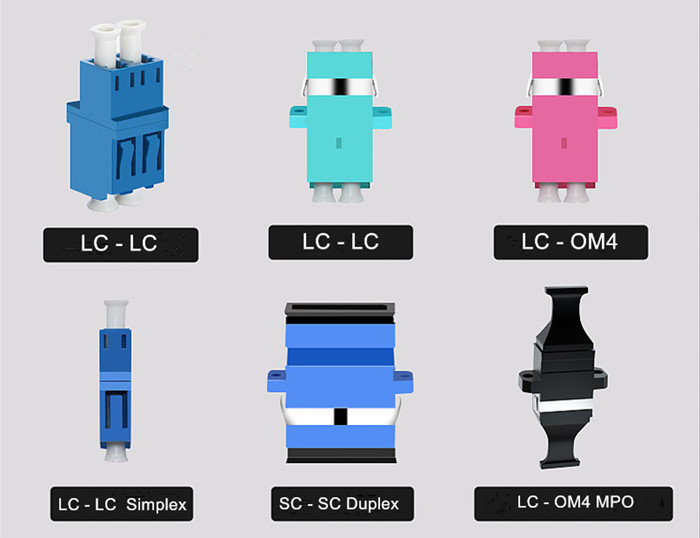

6. More Options Optic Adapters:

LC/UPC Fiber Optic Cable Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber

7. Wuhan Geehe Comm Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity

2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space

3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards

4) Big Production Capacity

800 Skilled workers and 5 Main production Lines, the optic adapter 8,900 pcs/ Day.

LC/UPC Fiber Optic Cable Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber



Product Tags:

LC/UPC Fiber Optic Cable Adapter



MM OM4 Fiber Optic Cable Adapter



Violet Mikrolink Fiber Optic Cable Adapter


China LC/UPC Fiber Optic Cable Adapter Duplex MM OM4 Flanged Violet Mikrolink OM4 Fiber wholesale
