Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm

Name: Dual Window 14 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
Brand: Geehe Comm
Price: 1 USD

China Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm wholesale

Brand Name : Geehe Comm

Model Number : GH-FO-1×2

Certification : CE,ISO9001:2015,ISO14001,RoHS, UL

Place of Origin : Wuhan China

MOQ : 100 pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T,Ali Pay,, Western Union, Cash, MoneyGram

Supply Ability : 2,800 Pcs Per Day

Delivery Time : Within 7-9 working days after confirm orders

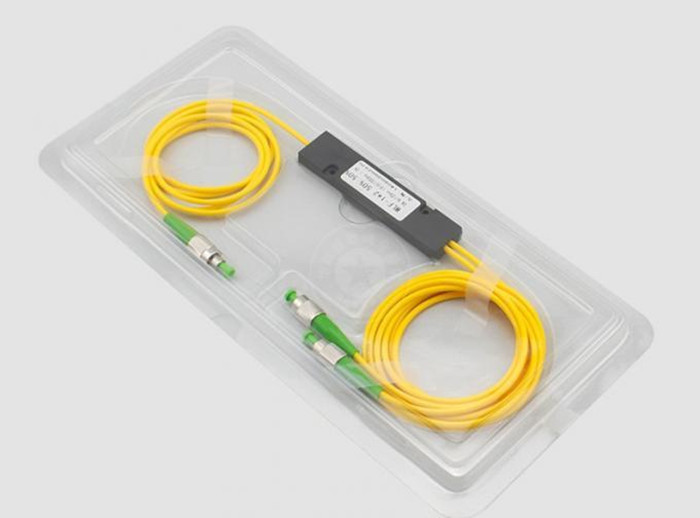

Packaging Details : Plastic box per pc with pressure defense sponge, outer carton

Model Name : 1×4 FBT Fiber Optic FC Coupler

Optical Coupler Configuration Type: 1x2 Operating Wavelength : 1310nm,1490nm,1550 nm

Split ratio : 50/50,40/60,30/70,20/80,10/90,5/95 etc

Other Types : Singlewindow, Dualwindow,Triplewindow

Function : Fiber distribution

Available pre-terminated : LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC

Polarization Alignment : Slow Axis or Fast Axis

Fiber Type : 250um bare fiber

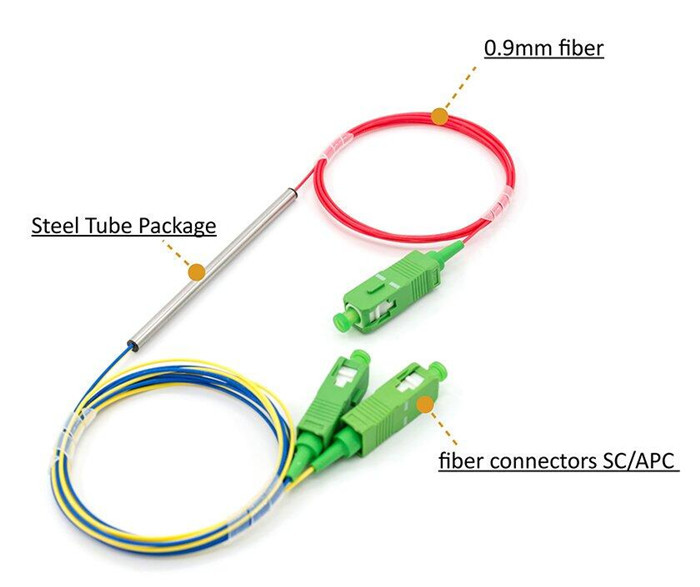

Package Type : Steel Tube

Configuration Type : 1×4 with FC connectors

Contact Now

Single Mode Dual Window 1310& 1550nm 1×4 FBT Fiber Optic FC Coupler

Optic Coupler Brief Introduces:

Fiber Fused Couplers / Splitters include wideband fused fiber couplers, polarization-insensitive miniature circulators, and fused single-mode wavelength division multiplexers.

MMFC series multi-mode single-window wideband fused fiber couplers are highly stable for multiport optical signal splitting. SWFC / DWFC series fused single or dual window wideband fiber 1x2 (2x2) couplers provide accurate optical signal coupling and splitting over a wide bandwidth with high performance and high reliability.

MIOC 3- or 4-port polarization-insensitive miniature circulators feature excellent optical characteristics over a wide wavelength range. SWD fused single-mode wavelength division multiplexers are manufactured using fused biconical taper technology.

Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm

1× 4 Fiber Optic Coupler Features& Benefits:

1) SWFC / DWFC:
Fused single or dual window wideband fiber 1x2 (2x2) couplers
Provides accurate optical signal coupling and splitting over a wide bandwidth with high-performance and high-reliability

2) SWD:
Fused single-mode wavelength division multiplexers
Manufactured using fused biconical taper technology

3) MIOC:
3- or 4-port polarization-insensitive miniature circulators
Excellent optical characteristics over a wide wavelength range

4) MMFC:
Multi-mode single-window wideband fused fiber couplers
Highly stable for multiport optical signal splitting

Dual Window Wide Brand Coupler Specification and parameter:

Parameter		P	A
Operating Wavelength(nm)		1310&1550
Operating Bandwidth(nm)		1310 ± 40nm,1550 ± 40nm
Fiber Type(dB)		Corning G652D OR Corning G657 A1
Insertion Loss (dB)	50/50	≤3.3	≤3.5
	40/60	3.70~4.40≤2.5	3.50~4.60/≤2.8
	30/70	5.00~5.60/≤1.8	4.90~6.10/≤2.1
	20/80	6.80~7.40/≤1.2	6.50~7.70/≤1.2
	10/90	9.60~10.50/≤0.6	8.80~11.40/≤0.8
	5/95	12.70~13.50 /≤0.4	12.05~14.05/≤0.5
	3/97	14.60~15.50/≤0.3	13.60~16.05/≤0.4
	2/98	16.60~17.90/≤0.25	15.60~18.20/≤0.3
	1/99	19.20~20.80/≤0.2	18.80~21.40/≤0.25
PDL(dB)		≤0.1	≤0.15
Return Loss(dB)		≥50	≥45
Directivity(dB)		≥55
Operating Temperature(℃)		-40 ~ +85

* The above specification is without connector

* Other specifications can be made on customer request

Ordering Information:

WBC-	X-	X2-	35-	XX-	X-	XX-	XX-	X
	P: Premium A: Grade A X: Customization	12:1x2 22:2x2	35:1310/1550nm	01: 01:99 02: 02:98 …… 50: 50:50	1:1 m x: Customization	25:250μM Fiber 09:900μM loose fiber	SC: SC/UPC SA: SC/APC 00: no connector	A: A B: B C:C
	Grade	Port number	Operating wavelength	Coupling ratio	Fiber length	Fiber type	Connect type	Dimension

EX:WBC-P-12-35-50-1-09-0-B

2×2 FIber Optic Coupler Application:

FTTx Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system

Wuhan Geehe Service:

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity

2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space

3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards

4) Fast Delivery

With skilled and stable workers, all the order turnover is fast than the competitors

5) Factory Audit

We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS

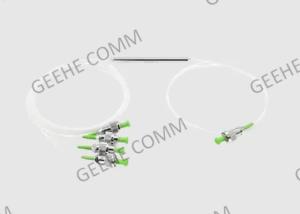

Dual Window 1×4 FBT Fiber Optic FC Coupler Single Mode 1310nm 1550nm
